CAD Blocks Explained
Create, edit and customize and organize your CAD blocks in BricsCAD.

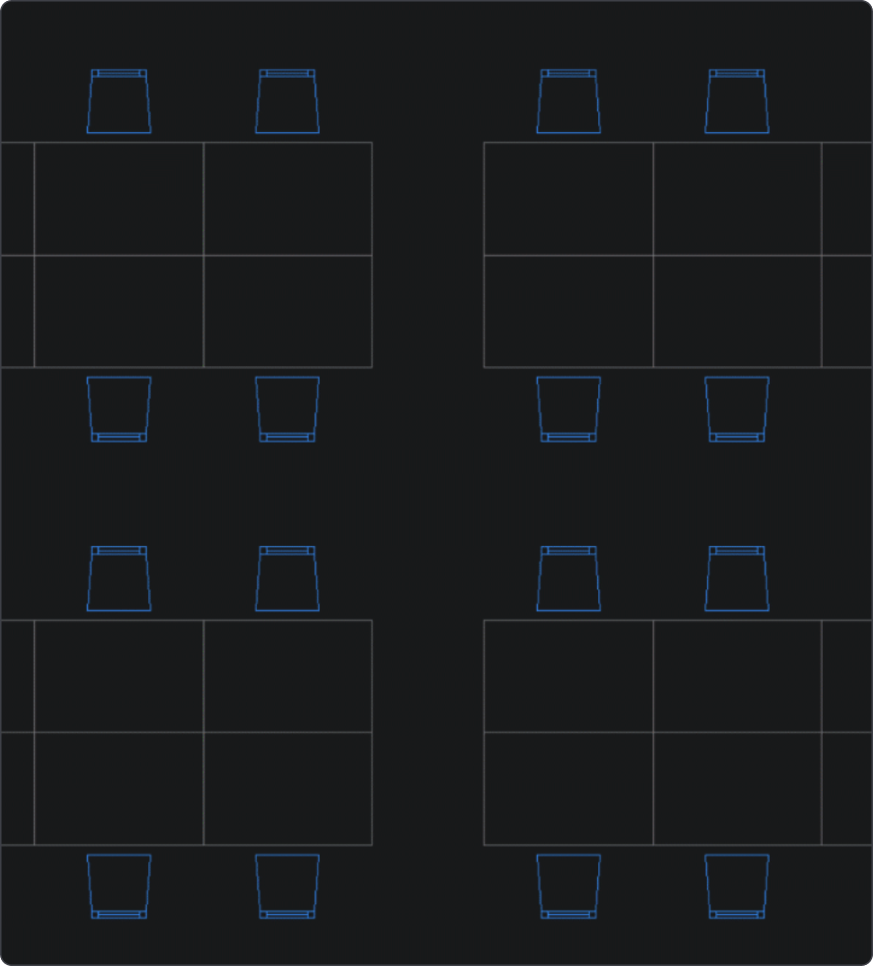

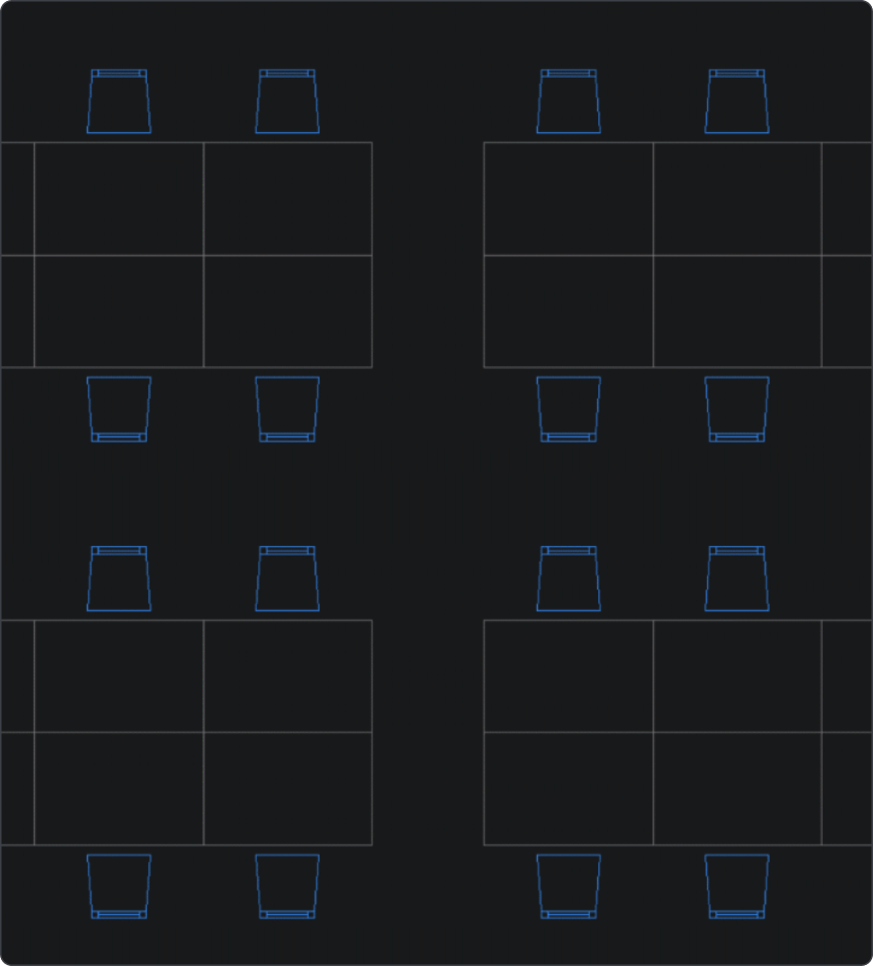

CAD blocks are groups of objects that function as a single 2D or 3D entity, allowing users to remove repetitive tasks, maintain design consistency, and decrease file sizes. Designers use CAD blocks for repeated geometry, to enhance productivity and streamline the design process, as they can reuse and share content like drawing symbols and components easily. Another reason CAD blocks are handy for designers is that they help to keep drawings uniform so that it's easier to maintain standards across the board while reducing the margin for error in a model or drawing. CAD blocks contain metadata called block attributes, which are useful in helping CAD users create reports, schedules and bills of materials. By using CAD blocks, designers can increase their accuracy and efficiency and make collaboration between design teams smoother.

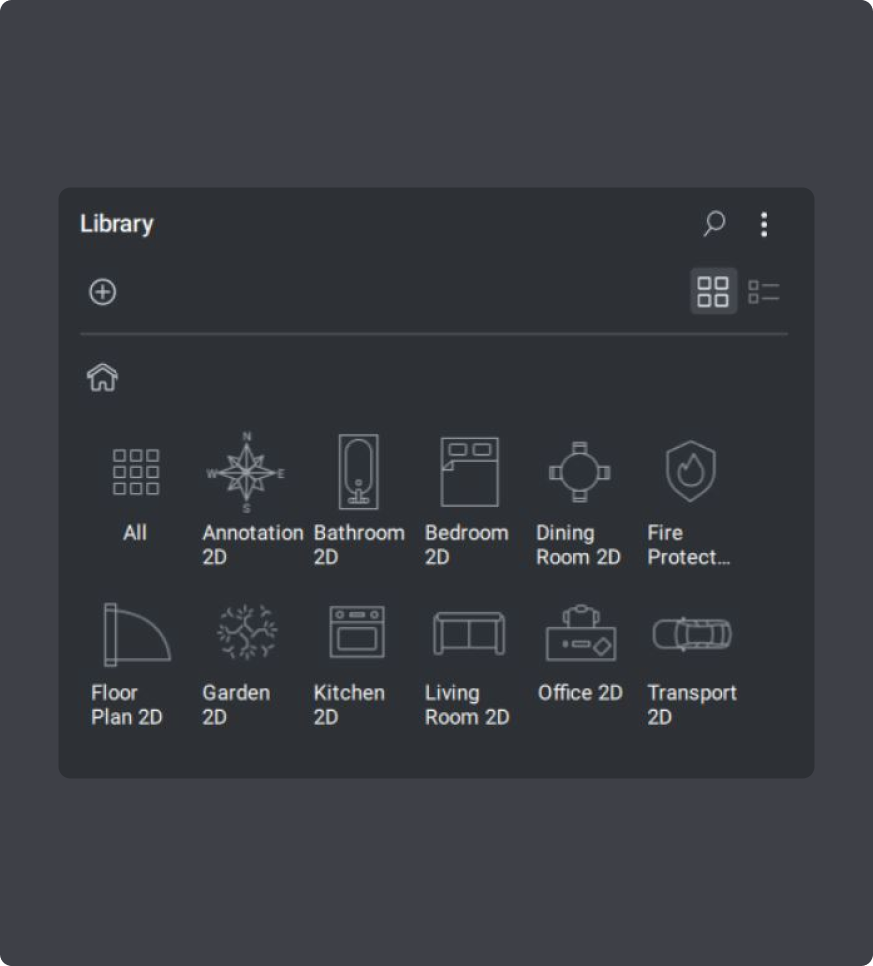

Organizing your CAD block library is essential in enhancing your workflow and ensuring easy access to the blocks you need while designing. Here are some steps you can take to organize your CAD block library effectively:

• Categorizing your CAD blocks will help you locate specific blocks quickly. Categorize blocks based on their function or application, such as electrical symbols, architectural elements, or mechanical components.

• Naming conventions help you identify different blocks at first glance. Make block names descriptive and concise and include relevant details like part numbers or project identifiers.

• Use container files to group related blocks into single drawing files. Quick access to related blocks will reduce overall clutter and streamline your navigation.

• Update your CAD block library regularly to maintain its relevancy and efficiency. This will keep your design experience smooth and productive, allowing users to access the most up-to-date elements without delay.

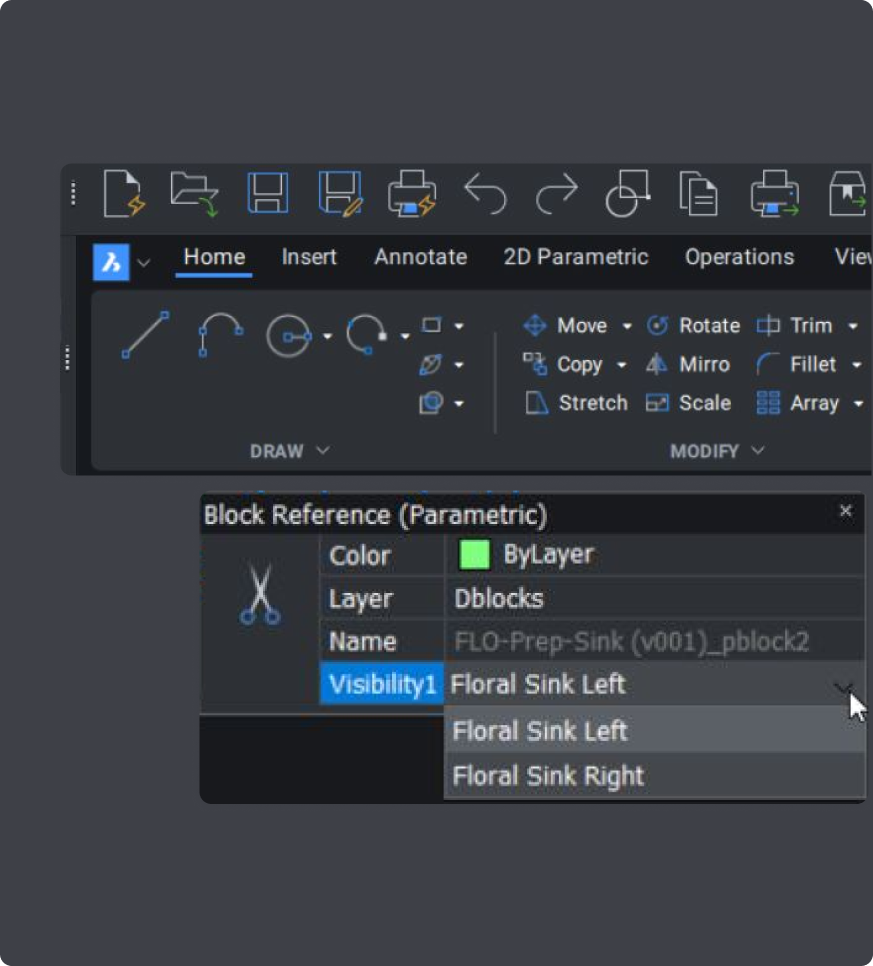

"Create custom CAD blocks easily in BricsCAD. To make a block, start by drawing the block geometry. Then, use the BLOCK command to define the block, select the entities and pick an insertion point. Use the BLOCKIFY command to automatically detect duplicate collections of entities and convert them into blocks.

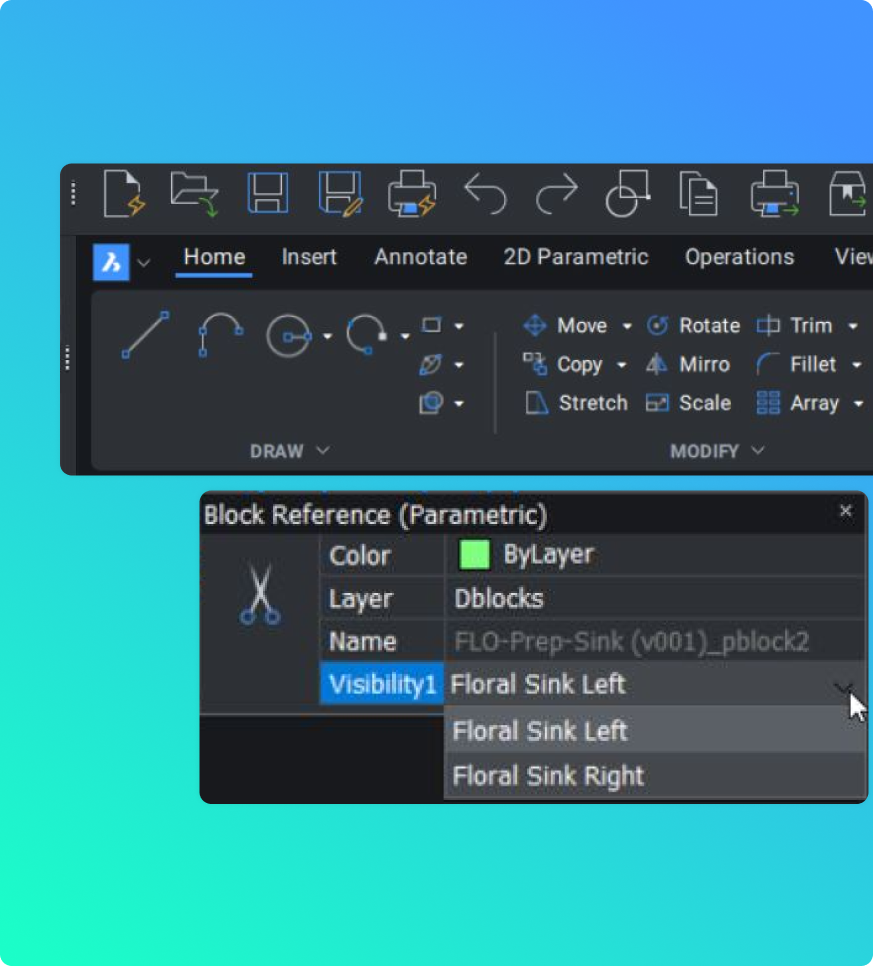

Do you need more advanced functionality? Add parameters to blocks to turn them into Parametric Blocks, which allow for dynamic modifications and visibility states. You can edit the block parameters with the BEDIT command. To convert AutoCAD^® Dynamic Blocks to BricsCAD Parametric Blocks, use the BLOCKCONVERT command.

Once you have created your custom blocks, save them in your block library for easy access. Mastering your CAD blocks’ creation, management, and organization will help you streamline your design process, reduce repetitive tasks and ensure consistency across your organization’s designs. "
