The first bicycles

By Rose Barfield 7 min July 14, 2019
The first bicycles

The first bicycle or 'velocipede' was invented in the early 1800s and looked very different to the ones we know today. However, you might be surprised to learn how many 'modern' bicycles design features aren't so modern after all.


The first 'bicycle' was invented in 1817 by German, Baron Karl von Drais...
It had no pedals, you had to run to use it. The first bicycles worked more like cross-trainers. When rotating pedals were added, they were mounted to the front wheel. This was extremely dangerous. In the late 1800s, the bicycle as we know it today, the ‘safety bicycle’, was introduced. Most modern features such as caliper brakes, electrical bikes, and even folding bikes were developed before 1900.


The first bicycles- timeline3-01

Who invented the first bicycle?

The first "bicycle" was invented in 1817 by German, Baron Karl von Drais. Technically it was a velocipede (a 2 wheeled human-powered vehicle). It had no pedals, to operate it you had to run. For this reason, it was nicknamed "the hobby horse". It was constructed almost entirely from wood, with brass bushing and steel-rimmed wheels. As a result, it weighed around 22 kg (48.5 lbs), to put that into context, modern bikes weight about half that.

The first bicycles- hobby-horse-KarlVonDrais-1024x828

Karl von Drais on his velocipede.

How did the first bicycles work?

Bicycles nearly looked very different. Before rotating pedals were added, there was the treadle bicycle, invented in 1860. (A treadle is another way of converting a pedal motion into a rotational one. It more closely resembles a cross-trainer.) Fortunately, the crank mechanism proved more popular otherwise bicycle culture might be very different today.

The first bicycles- 39 x 24 Star Bicycle-1024x768

Example of how bicycles could have ended up looking.

The bicycles, with pedals and cranks, first appeared in France around 1863. These pedals were attached to the front wheel of the bicycle. This design meant that bicycles were difficult to steer

Structure and design

The first bicycles were made from wood, with steel "tires". The frame shapes were also rather wild and typically curved. Manufacturers moved towards a diamond-shaped body, made from steel tubing as it was much stronger and lighter.

The first bicycles- boneshaker bicycle-1024x777

The boneshaker 1866. Image credit: Federal Highway Administration [Public domain], via Wikimedia Commons

The device earned the name "boneshaker" due to the combination of lack of suspension, steel-rimmed tires, and the poor road surface quality of the time.

The penny-farthing

The penny-farthing was invented as a way of increasing the maximum speed of the bicycle. That is because, in bicycles with front-mounted pedals, the rotational speed is limited to the size of the wheel. However, with a penny-farthing, the maximum speed is still limited by the leg length of the rider.

The first bicycles- penny farthing-1024x768

The penny-farthing, a dangerous, but iconic period in cycling history Image credit: Alistair Paterson

Penny-farthings were extremely unsafe given their instability and high center of gravity. Riders would frequently die when their legs became trapped in the spokes and they would have to step off their bicycles when traveling downhill, as most brakes were rear-mounted or, in the case of fixed pedals, were operated by simply backpedaling.

Women were also unable to use these bikes, due to the fashions of the time.

The modern bicycle

In the late 1800s, the bicycle, nearly as we know it today, the 'safety bicycle', was introduced. The design featured a chain-driven, rear wheel. However, the wheels were often differently sized and the frames were frequently somewhat bizarrely shaped.

Incredibly, they were manufactured using technologies from the sewing industry.

The first bicycles- Ladies safety bicycles1889

Ladies safety bicycles 1889

This new design introduced the bicycle to a wider market, including women.

Shortly after this the introduction of pneumatic tires and ball bearing hubs made for a smoother ride.

The upright bicycle became the standard as recumbent bicycles were banned from competitions, due to the increased speed possible with such designs. However, the International Human Powered Vehicle Association seek to promote 'banned class" bicycles.

Brakes

The first breaks were spoon brakes. They even feature on Karl Drais's original hobby horse design. They were operated by a cord or lever and pressed down onto the rear wheel.

The front brake was introduced in 1873 by John Kean. It made the penny-farthing slightly safer.

The first bicycles- spoon brake-1024x683

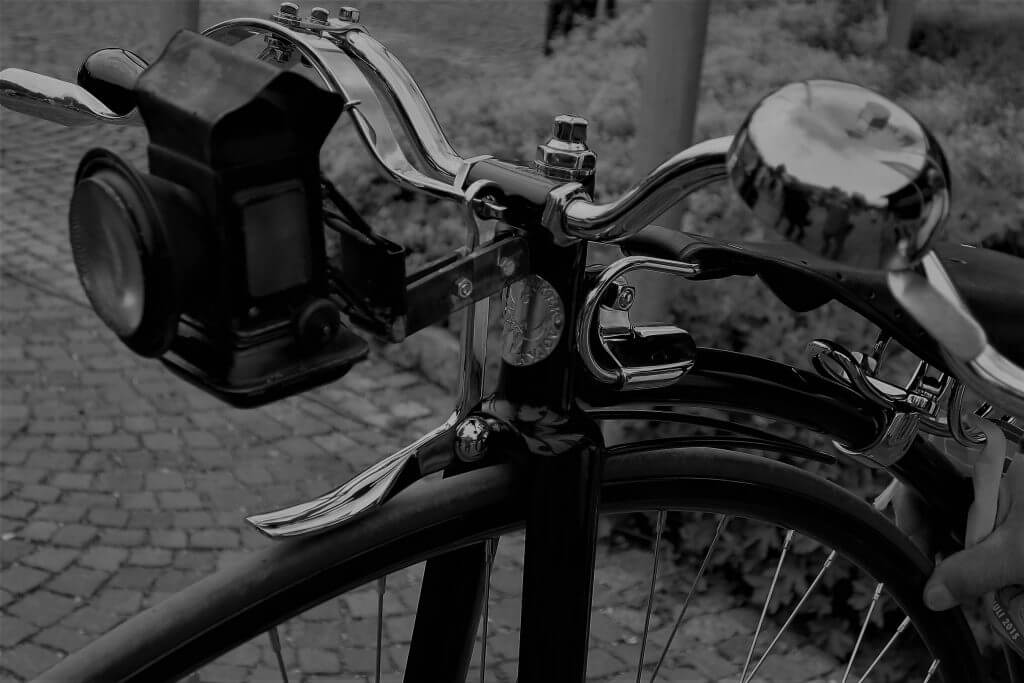

Example of a front-mounted spoon brake.

Caliper brakes were patented in 1887 by Browett and Harrison. It worked much as modern brakes do today.

The duck brake was designed in 1897, it prevented wear on the new, modern rubber tires and worked much like the spoon brake.

Rod-actuated brakes or "rod brakes" were fitted to bikes right into the late 1900s. The design featured a stirrup which holds brake shoes and pulls the brake up into the interior of the wheel rim. The braking power was lower than most modern bikes.

Disk brakes, or "U brakes" were developed in the 1890s, however, it wasn't until 1962 that these were added to two-wheeled vehicles, in the Lambretta TV175 Series 3 Scooter. Disc brakes for bicycles weren't popularized until the 1990s.

Hydraulic disc brakes were developed in 1994 by USA Sachs (SRAM) -- the PowerDisc.

Gears

Patents for epicyclic hubs date back to the mid-1880s. Before epicyclic gears were used in bicycle hubs, they were used on tricycles and quadricycles. Although tricycles and quadricycles were popular, no one made the connection between these and the humble hobby horse for quite some time!

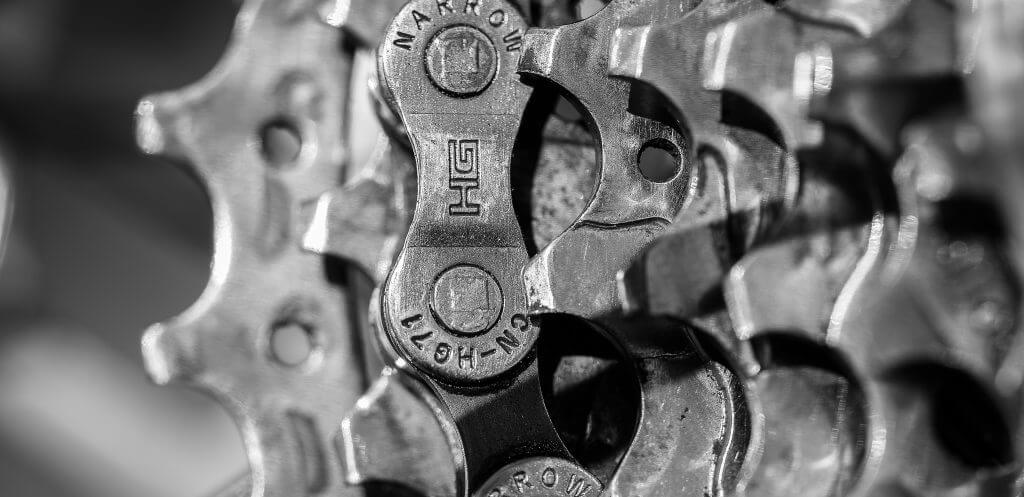

The first bicycles- gears-e1562836708631-1024x497

Until the 1930s cyclists were unable to use gearing in competition bicycles. They were allowed only a 2-speed bicycle. To change gear the cyclist had to remove the wheel and flip it!

Recently a "1% friction" gear system has been invented. It has no drive train and no chain! This converts 8 points of sliding friction into 2 points of rotating friction.

Modern trends

If you think that folding bikes and electric bikes are a modern invention, you'd be wrong.

The first bicycles- 1896-Bicycle-Patent-556802-e1562590636953

1896 folding Bicycle Patent 556,802

The first folding bike was created in 1878, England by Grout. It was a penny-farthing! Although some people do not consider this to be a 'true' example of a folding bike, many other versions exist well before the 1900s.

The first battery-powered bicycle or 'e-bike' was patented in 1895, US by Ogden Bolton Jr.

The cycling fad and fade

The bicycle was nearly a blink in the history books. Cycling began as a fashionable sport available only to rich, young, and fit men. By the 1870s, almost everywhere but the UK, cycling fell out of fashion. Thankfully, by the mid-1870s, the popularity of the penny-farthing found its way back to France and by the late 1870s the Americans had got in on the act too, importing the penny farthing and later manufacturing it themselves. By 1891 as much as ten percent of all advertising in U.S. periodicals was by bicycle makers.

The first bicycles- Tour de France 1906 01-e1562837024838-1024x504

1906 Tour de France Agence Rol [Public domain], via Wikimedia Commons

The Tour de France and other cycling competitions fueled the popularity for cycling in Europe during the early 1900s. Whereas, in America, the motorcar gained popularity and bicycles were considered a "children's toy". They returned to fashion in the 1980s when the fitness craze hit.
