Decoding Shapes & Fonts - Customizing BricsCAD® - P19

By Ralph Grabowski 20 min June 21, 2020
Decoding Shapes & Fonts - Customizing BricsCAD® - P19

In this post you will learn all about fonts, complex line types, and shapes in BricsCAD®.

BricsCAD uses .shx files for fonts, shapes, GD&T symbols, and complex linetypes. You can create source .shp files, the subject of this post. BricsCAD, does not have a compiler to convert .shp to the compiled .shx files that BricsCAD works with.

BricsCAD displays fonts from both TrueType (.ttf) and AutoCAD® shape (.shx) files.

In addition to using .shx files for displaying fonts, BricsCAD uses the second type of .shx file for simple blocks-type entities known as "shapes," and so includes the Load and Shape commands for loading and placing them.

Explanations updated by Jason Bourhill of CAD Concepts.

QUICK SUMMARY OF SHAPE DEFINITIONS

Shapes and fonts are defined by .shp files, which need to be compiled into .shx files. A shape definition consists of at least two lines of text, a header that labels the shape or font, followed by one or more lines of data that describe the shape. The end of the data section is signified with a zero.

LINE 1: HEADER

*130,6,NAME

* (asterisk) --- indicates the start of the shape definition.

130 --- numbers the shape; fonts use the character's ASCII number. The range is 1-255.

6 --- specifies the total number of data bytes.

NAME --- names the shape; must be in uppercase, and a maximum of 16 characters

LINE 2: DATA

014,002,01C,001,01C,0

Shape data consists of vector and instruction codes. Vector codes define movement and drawing in 16 directions:

  • --- first digit (always 0) indicates the number is hexadecimal
  • --- second character specifies the vector length and ranges from 1 through F (15 units). 4 --- the third character specifies the direction of the vector

INSTRUCTION CODES

13Multiple bulge-specified arcs.

Hexadecimal Decimal Description
000 0 End of shape definition.
Basic Draw and Move
001 1 Begin draw mode (pen down).
002 2 End draw mode (pen up).
Scaling
003 3 Divide vector lengths by the next byte.
004 4 Multiply vector lengths by the next byte.
Memory
005 5 Push the current location onto the stack.
006 6 Pop the current location from the stack.
Draw subshape
007 7 Draw the subshape number given by the next byte.
Advanced Draw and Move
008 8 x,y displacment given by next two bytes.
009 9 Multiple x,y displacements; terminated with (0,0) code.
Arcs
00A 10 Octant arc defined by next two bytes
00B 11 Fraction arc defined by next five bytes.
00C 12 Arc defined by x,y displacement and bulge. 00D

Fonts, Complex Linetypes, and Shapes

BricsCAD uses shapes for fonts, text in complex line types, and shapes.

SHX FONTS

In the early days of CAD, fonts were coded to be highly efficient. Computers didn't have much horsepower, and text was one of the slowest parts of the drawing display. To solve the problem of vector fonts taking a long time to display on the slow computers of the 1980s, Autodesk® invented the SHX format: the simpler the font, the fewer the lines, the faster the display.

The simplest font of all,Txt.shx, looked ugly, but was able to draw most characters with just eight lines. The drawback to SHX-based shapes, however, is that they are not well-suited to defining the complex curves that truly represent fonts, nor can they be properly filled.

As computers became faster over time, the number of lines used to draw characters increased. Eventually, Apple's TrueType font technology allowed for truly smooth-looking and filled fonts, even in CAD drawings and on plots. The gallery below illustrates the development of the letter Q, from the original Txt.shx to the more recent TimesRoman.ttf.

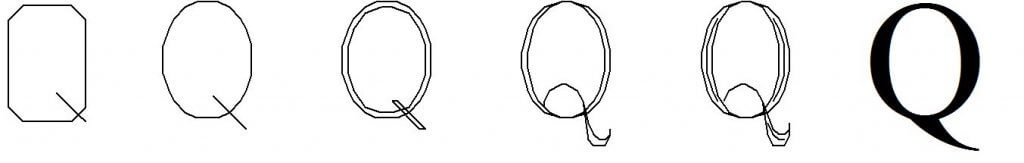

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 1-1-1024x163

Development of the letter Q from the 1980s to today

These are the file names of the SHX files included with BricsCAD:

SHX Font File Meaning
complex .shx Serif font
hangul .shx Korean font
isocp .shx ISO standard font (European)
italic .shx Single-stroke italic font
italicc .shx Double-stroke italic font
italict .shx Triple-stroke italic font
Japanese .shx Japanese font
monotxt .shx Mono-spaced font (every character takes up the same width)
romanc .shx Triple-stroke serif font
romand .shx Double-stroke serif font
romans .shx Single-stroke serif font
romant .shx Triple-stroke serif font (same as RomanC)
simplex .shx Non-serif font
trad_chin .shx Chinese font
txt .shx Minimal non-serif font
About Fonts in BricsCAD

To be compatible with old drawings, BricsCAD supports the use of original .shx fonts as well as today's .ttf TrueType fonts. TTF files are included by default with the Windows and MacOS operating systems, and with some Linux systems. BricsCAD does not support PostScript fonts, such as those provided as PFA and PFB files.

To load a font file into a drawing, use the Style command (a.k.a. Drawing Explorer), and then place text with the Text, MText, and other text-related commands. BricsCAD accesses TrueType fonts from each operating system's default font folder:

Windows: C:\Windows\FontsLinux: /usr/share/fonts/truetype

Linux: /usr/share/fonts/truetype

MacOS: /Users/Library/FontCollections

If a drawing displays fonts incorrectly, then the problem lies with BricsCAD not finding the location of the source font file. Here you have two solutions:

  • Use Settings | Files | Support file search path to add paths
  • Add the missing font files to the existing paths

TIP To obtain a list of all fonts used by a drawing, run the eTransmit command.


USING SHX IN COMPLEX LINETYPES

Complex linetypes use shapes for the text portion. The position and size of the text are defined in the default.lin and iso.lin linetype files, while the characters themselves are defined by the arial.ttf font, by default. The font used is determined by the Standard text style; change the style, and the linetype font changes.

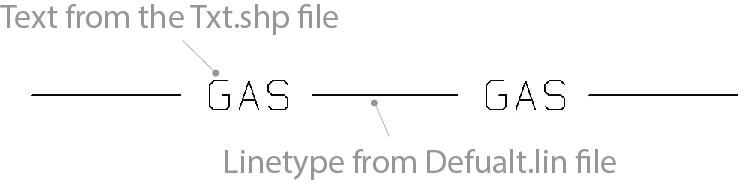

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 2-1

Complex linetype showing how it combines text with regular linetypes

They are loaded and placed with the Linetype command. For details, see the post on linetypes

SHX IN SHAPES

Shapes are an early form of a block (symbol). Like fonts, they were displayed very quickly on the slow computers of the 1980s. Unfortunately, they were very hard to code; today it is so much easier to use blocks, and so shapes are no longer used for symbols. Nowadays, shapes are used only by the Tolerance command.

Shapes use a format of the SHX file that is nearly identical to that of fonts. Shapes must first be loaded into the drawing with the Load command, and then placed in the drawing with the Shape command.

SHX IN GD&T

GD&T (geometric dimensioning and tolerances) symbols are used for machining parts precisely.

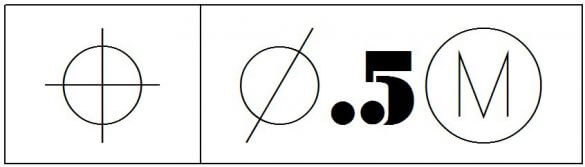

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 9-585x167

Tolerance symbols

The symbols are placed by the Tolerance command, and are based on shapes from the gdt.shx file.

SHAPE COMPATIBILITY WITH AUTOCAD®

For fonts, complex linetypes, shapes, and tolerances, BricsCAD can use any .shx file that AutoCAD® can use.

Both CAD packages use a .fmp file (short for "font map") to substitute similar-looking .shx fonts for those found in each other's drawings. At the time of writing, BricsCAD specifies default.fmp but has not implemented it.

About Shape Files

The shape file format is arcane, written to be a highly efficient form of the symbol for the slow-running personal computers of the 1980s. Shapes were quickly superseded by blocks but remained on the scene due to their use in line types and so on.

Coding custom shape definitions require knowledge of trigonometry. Jason Bourhill recommends that you use the MkShape (make the shape) utility provided by Martin Drese.

There are two kinds of files used for shapes: .shp and .shx. The differences between them are as follows:

  • .shp are shape source When you write or edit a shape or font, you work with the .shp file. A portion of a typical .shp file looks like this:

*130,6,TRACK1
014,002,01C,001,01C,0

  • .shx are compiled shape files. These are the files that are loaded into BricsCAD for use with fonts, tolerances, and so on.

TIP You can use AutoCAD® or the Compile utility from Bricsys to compile shape files you create using the information in this post. The Compile utility is part of the free BCadTools collection by Torsten Moses from Bricsys. You cannot edit .shx files, unless you have access to a shape decompiler program. Autodesk® offers the DumpShx.Exe utility in AutoCAD®'s Express folder, or else search online for decompilers.


THE SHAPE FILE FORMAT

Autodesk® defined two formats for the shape file: one for shapes (simple blocks), and one for fonts. The difference between the two types is subtle: the font version of the file includes a code 0 to alert the CAD system to treat the file as a font definition. When the 0 is missing, the file is treated as a shape definition.

BricsCAD can load both forms of a shape file, as shapes with the Load command, and as fonts with the Style command. You cannot, unfortunately, distinguish between the two easily. One way is to guess by the file or folder names. For instance, italic.shx is a font file, while ltypeshap.shx is probably a shape file. Other file names can be vague: symusic.shx seems like a shape file, but in fact, is a font file (musical symbols). BricsCAD does not warn you if you load the wrong kind of shape file with the Load command; in contrast, the Style command lists only font-related SHX files.

Here are some aspects of the shape file format:

  • Shape files typically define one or more shapes, up to 258 in total.
  • Font files typically define all the characters for a single font, such as A-Z, a-z, 0-9, and punctuation.
  • Unicode font files can have up to 32,768 definitions.

Like many other customization files, shape definitions consist of two or more lines. The first line is the header, which labels the shape, while the second (and following) lines define the shape through codes. The final code in each definition is 0, which is called the terminator.

The general format of a shape definition consists of a header line, followed by one or more definition lines:

*shapeNumber,totalBytes,shapeName
byte1,byte2,byte3,...,0

Each line can be up to 128 characters in length; shape files with long lines will not be compiled. Each definition is limited to a total of 2,000 bytes. You can use blank lines to separate shape definitions and the semicolon ( ; ) to include comments in the file.

HEADER FIELDS

The following describes the fields of the shape's header description:

Definition Start

*130,6,TRACK1

The asterisk signals AutoCAD® that the next shape definition is starting.

shapeNumber *130,6,TRACK1

Each shape requires a unique number by which it is identified. For fonts, the number is the equivalent ASCII code, such as 65 for the letter A.


TIP The shapeNumbers 256, 257, and 258 are reserved for the degree, plus-or-minus, and diameter symbols.


totalBytes

*130,6,TRACK1

After defining the shape, you have to add up the number of bytes that describe the shape, including the terminator, 0. Makes no sense to me. There is a limit of 2,000 bytes per shape definition.

Unicode shape numbers use two bytes each.

shapeName

*130,6,TRACK1

Shape names can be mixed cases. The maximum length of the name is 16 characters; excess characters are truncated.

DEFINITION LINES

The header line is followed by one or more lines that define the shape or font. This is the nitty-gritty part of shape files, and you will now see why they are rarely used anymore.

bytes

014,002,01C,001,01C,0

The shape is defined by "bytes," called that because each code is a single byte (the computer measurement) in size. Bytes define vector lengths and directions, or instruction codes. They can be in decimal (base 10) or hexadecimal (base 16) format. Definition lines are a maximum of 128 characters long (including commas), and a maximum of 2,000 bytes overall (not including commas).

The last definition line ends with a 0.


TIP When the first character of a byte is a 0, the two characters following are in hexadecimal, such as 00C (12, in decimal).


VECTOR CODES

Vector codes describe how the shape is drawn. They define movement (pen up) and drawing (pen down). Vector codes are limited to 16 directions, increments of 22.5 degrees, as shown by the figure:

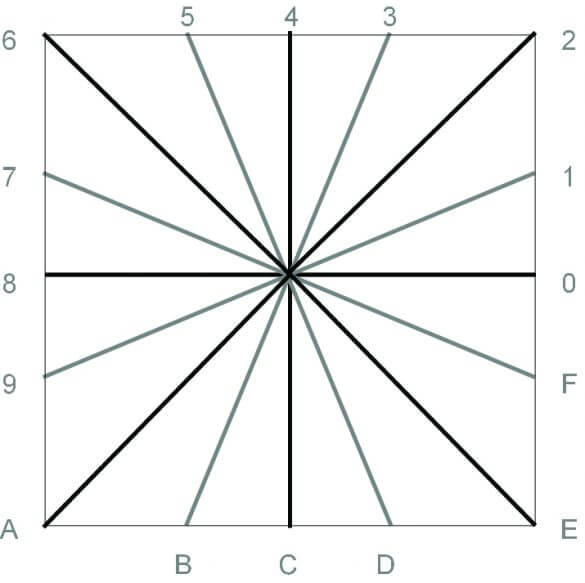

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 3-1-585x583

Vectors defining direction and distance

Notice that the lengths are not radial. Diagonal vectors such as 2 and E are 1.414 times longer than the orthogonal vectors, such as 4 and 0. (Recall that 1.414 is the square root of 2.)

Vector codes are always in hexadecimal notation, such as 02C:

Decimal Hexadecimal
0 … 9 0 … 9
10 A
11 B
12 C
13 D
14 E
15 F

INSTRUCTION CODES

In addition to describing direction and length, shapes use codes to provide instructions. Code numbers can be in decimal (dec) or hexadecimal (hex). Hex codes always have three digits, the first being a 0 (zero). Notice that some codes rely on additional codes following. And, note that shapes are limited to lines, arcs, and spaces.

Hex Dec Description
000 0
Basic Draw and Move
001 1
2
Scaling
003 3
004 4
Memory
005 5
6
Draw Subshape
007 7
Advanced Draw and Move
008 8
009 9
Arcs
00A 10
00B 11
00C 12
00D 13
Fonts Only
00E 14

A stack is a specific type of memory called FILO, short for "first in, last out." When two numbers are stored in the stack memory, the last number stored is the first one out. Think of an elevator, where the first person in is usually the last one out.

End of Shape -- 0/000

Code 0 must mark the end of every shape definition. It appears at the end of the last line.

00C,(2,0,-127),0

In hex notation, 0 appears as 000.

Draw Mode -- 1/001

Code 1 starts drawing mode ("pen" is down). By default, every shape definition starts with draw mode turned on.

2/002: Move Mode --

Code 2 starts move mode ("pen" is up). In the sample below, the pen is raised before moving to a new location.

2,8,(-36,-63),1,0

Reduced Scale -- 3/003

Code 3 specifies the relative size of each vector. Each shape starts at the height of one of the orthogonal vectors, such as 4. To make the shape smaller, use code 3 followed by a byte specifying the scale factor, 1 through 255. For example, the following code draws the shape half as large:


TIP Within a shape definition, the scale factor is cumulative. Using the same scale code twice multiplies the effect. For example, 3,2 followed by another 3,2 makes part of the shape four times smaller. At the end of the shape definition, return the scale to unity so that other shapes are not affected.


Enlarged Scale -- 4/004

To make the shape larger, use code 4 followed by a byte specifying the scale factor, 1 through 255. For example, the following code draws the shape twice as large:

4,2

Note that you can use the 3 and 4 codes within a shape definition to make parts of the shape larger and smaller.

Save (Push) -- 5/005

Code 5 saves (pushes) the current x, and y-coordinates to the stack memory. You then use code 6 to recall (pop) the coordinates for later use. The stack memory is limited to four coordinates. By the end of the shape definition, you must recall all coordinates that you saved; i.e., there must be an equal number of code 5s and 6s, as shown below:

2,14,8,(-8,-25),14,5,8,(6,24),1,01A,016,012,01E,02C,02B,01A,2,
8,(8,5),1,01A,016,012,01E,02C,02B,01A,2,8,(4,-19),14,6, 14,8,(8,-9),0

Recall (Pop) -- 6/006

Code 6 recalls (pops) the most recently saved coordinates from the stack memory.

Subshape -- 7/007

Code 7 calls a subshape, which is simply another shape. Shapes can be used within other shapes, which helps reduce the tedium of coding shapes. Code 7 is followed by a reference to another shape number, between 1 to 255. (Recall that all shapes within a .shp file are identified by number.) For example:

7,2 calls shape 2 a subshape.

X,y Distance -- 8/008

Codes 8 and 9 overcome the restriction that the vector codes (just 16 directions) place on the drawing.

Code 8 defines a distance using two bytes that range from -128 to 127:

8,xDistance,yDistance

The example below shows code 8 being used often:

2,14,3,2,14,8,(-21,-50),14,4,2,14,5,8,(11,25),1,8,(-7,-32),2,
8,(13,32),1,8,(-7,-32),2,8,(-6,19),1,0E0,2,8,(-15,-6),1,0E0,2,
8,(4,-6),14,6,14,3,2,14,8,(21,-32),14,4,2,0

In the first line of code above, 8,(-21,-50) draws 21 units left (-x), and 50 units down (-y).

X,y Distances -- 9/009

Whereas code 8 specifies a single coordinate, code 9 specifies a series of coordinates, terminated by (0,0). For example:

9,(1,2),(-3,4),(5,-6),(0,0)

Octant Arc -- 10/00A

Code 10 defines an octant arc, which is an arc whose angle is limited to multiples of 45 degrees, as shown in the following figure. The arc always starts at position 0, and then moves counterclockwise.

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 5-1-585x588

Defining the length of an arc through octants

The arc is specified by the following bytes:

10,radius,- 0 startingOctant octantSpan

  • 10 specifies an octant arc.
  • radius is a value between 1 and 255.
  • Negative sign changes the direction of the arc to clockwise; leave it out for a counterclockwise direction.
  • 0 specifies the following characters are hexadecimal.
  • startingOctant specifies where the arc starts; the value ranges between 0 and 7).
  • octantSpan specifies how hard the arc travels, again a number between 0 through 7.

TIP When octantSpan is 0, the shape draws a circle. The octant arc code usually uses parentheses to make itself clearer, such as: 10,(25,-040)


Fractional Arc -- 11/ 00B

Code 11 is more useful because it draws arcs that don't end and start at octant angles. Its specification requires, however, five bytes:

11,startOffset,endOffset,highRadius, radius,- 0 startingOctant octantSpan

  • 11 defines the fractional arc.
  • startOffset specifies how far (in degrees) from the octant angle the arc begins.
  • endOffset specifies how far from an octant angle the arc ends.
  • highRadius specifies a radius larger than 255 units; when the arc has a radius of 255 units or smaller, then this parameter is 0. The highRadius is multiplied by 256, then added to the radius value to find the radius of the arc.
  • radius is a value between 1 and 255.
  • Negative sign changes the direction of the arc to clockwise; leave it out for a counterclockwise direction.
  • 0 specifies the following characters are hexadecimal.
  • startingOctant specifies where the arc starts; the value ranges between 0 and 7.
  • octantSpan specifies how far the arc travels, again a number between 0 through 7.

TIP Here is how Autodesk® suggests determining the value of startOffset and endOffset:

  1. Determine the offsets by calculating the difference in degrees between the starting octant's boundary (which is always a multiple of 45 degrees) and the start of the arc.
  2. Multiply the difference by 256.
  3. Divide the result by 45.

Bulge Arc -- 12/00C

Code 12 draws a single-segment arc by applying a bulge factor to the displacement vector. 0C,xDisplacement,yDisplacement, bulge

  • xDisplacement and yDisplacement specify the starting x, and y-coordinates of the arc.
  • bulge specifies the curvature of the arc. All three values range from -127 to 127.

This is how Autodesk® says the bulge is calculated: "If the line segment specified by the displacement has length D, and the perpendicular distance from the midpoint of that segment has height H, the magnitude of the bulge is ((2 * H / D) * 127)."

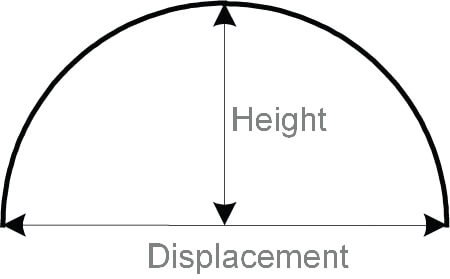

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 7-1

Calculating the size of a bulge

A semicircle (180 degrees) would have a bulge value of 127 (drawn counterclockwise) or -127 (drawn clockwise), while a line has a value of 0. For an arc greater than 180 degrees, use two arcs in a row.

Polyarc -- 13/00D

Code 13 draws a polyarc, an arc with two or more parts. It is terminated by (0,0).

13,(0,2,127),(0,2,-127),(0,0)


TIP To draw a straight line between two arcs, it is more efficient to use a zero-bulge arc, than to switch between arcs and lines.

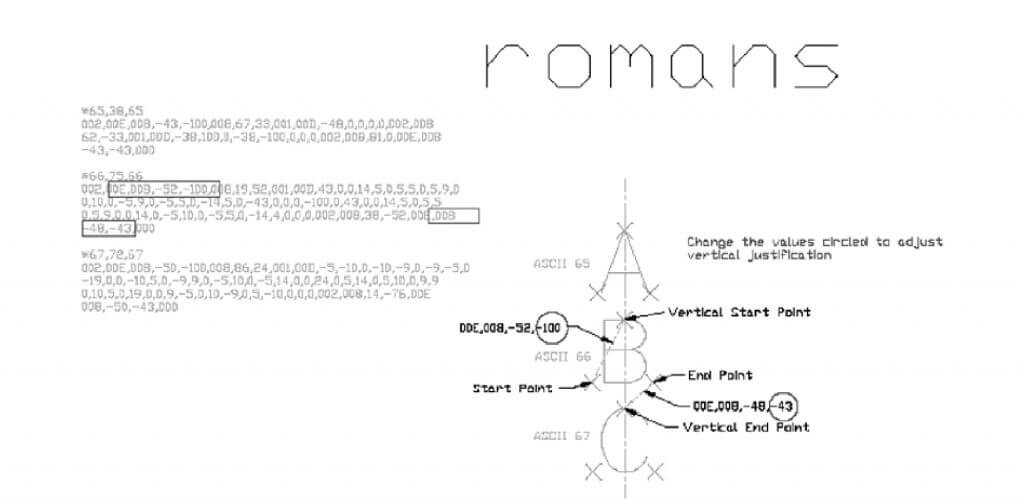

Flag Vertical Text Flag -- 14/00E

Code 14 is for fonts only, and only fonts that are designed to be placed horizontally and vertically. When the orientation is vertical, the code following is processed; if horizontal, the code is skipped.

Decoding Shapes & Fonts - Customizing BricsCAD<sup>®</sup> - P19- 8-1024x499


Download BricsCAD free for 30-days

Start Making Complex Linetypes Today

Permanent or subscription licenses that work in all languages, and all regions.


  1. Introduction
  2. 55 Tips for BricsCAD Users
  3. Settings
  4. Changing the Environment
  5. Custom User Interface
  6. Introduction to the Customize Dialog Box
  7. Customize the Menu Bar & Context Menus
  8. Toolbars and Button Icons
  9. Writing Macros and Diesel Code
  10. Ribbon Tabs and Panels
  11. Keystroke Shortcuts, Aliases & Shell Commands
  12. Mouse, Double-click & Tablet Buttons
  13. Absolutely Everything You Need to Know About The Quad
  14. Rollover Properties
  15. Workspaces and the User Interface
  16. Designing Tool & Structure Panels
  17. Creating Simple & Complex Linetypes
  18. Patterning Hatches
  19. Decoding Shapes & Fonts
  20. Coding with Field Text
  21. Writing Scripts
  22. Programming with LISP (Introduction)
  23. LISP Functions
Ralph Grabowski

by Ralph Grabowski - CAD Writer, publisher of upFront.eZine

Ralph is the publisher of the weekly 'upFront.eZine' e-newsletter on the business of CAD and the 'WorldCAD Access' blog on technology. Author of 240+ books and ebooks about computer-aided design, and producer of 220+ videos on using CAD.

November 6, 2024 4 min

On-site document management made easy with Bricsys® 24/7 & LB Aproplan

The construction industry faces several challenges regarding document management. To deliver projects on time and within budget, project managers must easily maintain document version control, manage user access to documents, and streamline approval processes. Poor document management inevitably leads to complications, delays, efficiency loss and increased costs down the line.

September 17, 2024 3 min

Customizing Line Types in BricsCAD

Creating custom line types in BricsCAD can significantly enhance the detail and clarity of your drawings. Whether you’re working on complex engineering plans or simple layout designs, understanding how to create your own line types can give your projects a professional edge. Follow this step-by-step guide to learn how to create both simple and complex line types in BricsCAD.

September 10, 2024 3 min

BricsCAD Partner Apps for Civil and Survey Workflows

At Bricsys, we provide a solid foundation for our specialist survey and civil app developers to create specialist civil and survey tools that deliver robust and efficient workflows for BricsCAD users. Let’s see what updates and improvements our various developer partners have made to complement BricsCAD V24's civil and survey workflows.

These civil and survey applications are among multiple third-party applications supported by BricsCAD, with our developers working to improve their functionality and remain on pace with our new features introduced with every release.

Follow us on social media
