55 Tips for BricsCAD Users - Customizing BricsCAD® - P2

By Ralph Grabowski 18 min February 9, 2020
55 Tips for BricsCAD Users - Customizing BricsCAD® - P2

There are many ways to customize BricsCAD ® or change the settings that you might get a little lost. So here are my 55 Tips:

1 The Customize command

To change menus, ribbon, and other interface elements, enter the Customize command. You can modify the currently active customization file or load another CUI file (for example, from AutoCAD®).

2 Settings dialog box

BricsCAD groups all settings variables in a single dialog box, the Settings dialog box. Enter the Settings command to open the dialog box.

You can easily find any variable or program setting using the search field in the Settings dialog.

null

Searching for variable names in the Settings dialog box.

To open the Settings dialog, enter the Settings command. Click the binoculars button to define the search target: variable names, titles, and help text.

3 Tutorial Movies

Watch BricsCAD tutorial movies. Some of the ones dealing with customization were produced by the author of this post, Ralph Grabowski.

null

Web page listing tutorial videos for BricsCAD.

4 The Commandline

To turn the display of the Commandline on and off, enter the CommandLine command or press Ctrl+9. You can dock the Commandline at the top or bottom of the BricsCAD application window or place it anywhere on any monitor attached to your computer. Hold down the Ctrl key (Cmd key on Macs) to prevent the Commandline from docking.

null

Docked Commandline

When the Commandline is off, the prompts are displayed by the status bar and in the drawing area. (See figures below)

null

Left: Command prompt displayed on the status bar. Right: ...and in the drawing area

null

Double-click the left end of the status bar to toggle the display of the Commandline.

5 The Prompt Menu

When you launch a command, a Prompt menu displays all options for the current command. (See figure at right.) Use the mouse to select an option in the prompt menu.

The display of the prompt menu is controlled through the PromptMenu variable. In the Settings dialog box under Program Options Display, choose Prompt Menu, then select a location for the prompt menus to display. Choose 'Don't display prompt menu' to suppress the display of prompt menus.

6 Learn by Hovering

When you hover the cursor over a tool button, a tooltip is displayed, from which you can read a brief explanation of the tool's purpose. In addition, a line of help text is displayed on the status bar at the bottom of the BricsCAD application window.

null

Tooltip explaining the function of a button on the toolbar.

7 Get Help on a Command

When you press F1 while a command is active, BricsCAD displays help specific to that command. You can also access the complete command reference online.

8 Aliases

When you are familiar with typing AutoCAD® commands and aliases at the command prompt, you can use precisely the same names in BricsCAD. These are called "aliases," You can create, edit, and delete them with the Customize command.

9 Customize Aliases

An alias for a command can be a single letter, such as L for "Line," and a different name, such as axis for "infline". To edit existing aliases or add new aliases, enter the Customize command, and then select Command Aliases tab on the Customize dialog.

10 Option Shortcuts

To choose an option quickly during a command, type the capitalized letter of the option's name. When drawing a polyline, for instance, type a to start drawing arc segments and type l to switch back to drawing line segments.

: PLINE
Start of polyline:.
Set next point or [draw Arcs/Distance/Halfwidth/Width]: a Set end of arc or [draw Lines/Angle/CEnter/Direction/Halfwidth/Radius/Second point/Width]:l Set next point or [draw Arcs/Distance/Halfwidth/Width]:.

(new in v20) You can use your cursor to pick the name of the option directly in the Commandline area.

null

Selecting a command option in the Commandline with the cursor.

11 Custom Keyboard Shortcuts

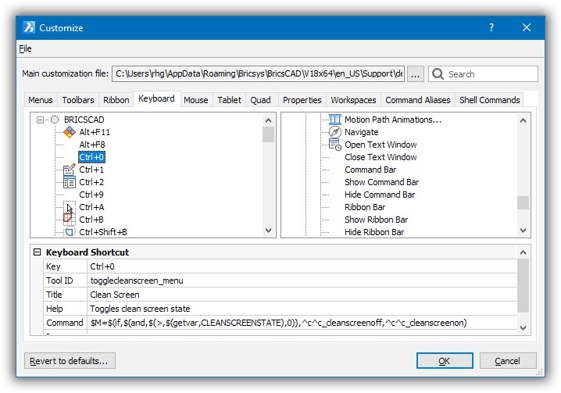

How to create keyboard shortcuts: enter the Customize command, and then choose the Keyboard tab. You can use any key on the keyboard and any function key, together with combinations with Shift, Alt, and Ctrl.

null

Customizing keyboard shortcuts

Linux and Windows versions of BricsCAD use the same Cmd and Alt keys for shortcuts. In the MacOS version, Ctrl and Alt are not used; instead, mentally map them to the Mac's Cmd and Option keys:

Linux, Windows MacOS
Ctrl Cmd
Alt Options

12 Toolbars

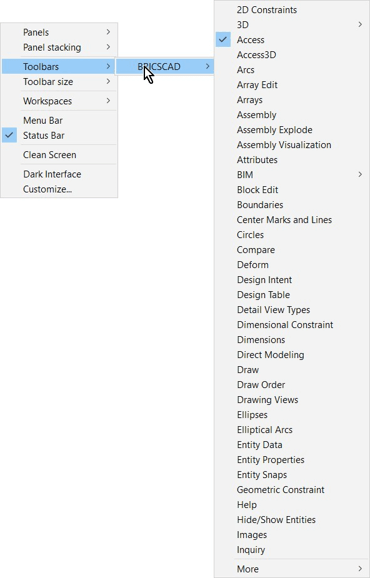

The best way to open additional toolbars is to right-click a toolbar or the ribbon and then click on Toolbar > BricsCAD to see a list of all available toolbars. (See figure.) Click on the name of the toolbar you want to open. Toolbars that are already open have a checkmark next to them.
When you click a toolbar that is open, it closes.

13 Floating Panels

User interface elements, such as toolbars, ribbon, the Commandline, and the Properties panel, can be placed anywhere on the screen, including on a second monitor. Press and hold the left mouse button to drag them to another location.

To prevent a toolbar or panel from docking against the edge of the BricsCAD window, press and hold the Ctrl key (Cmd key on MacOS) when positioning the item.

The LockUI variable determines if toolbars and panels are to be locked into place.

null

Accessing toolbars in BricsCAD

14 Resize Panels

You can resize the height of any panel by dragging its top edge (when docked at the bottom) or its bottom edge (when docked at the top).

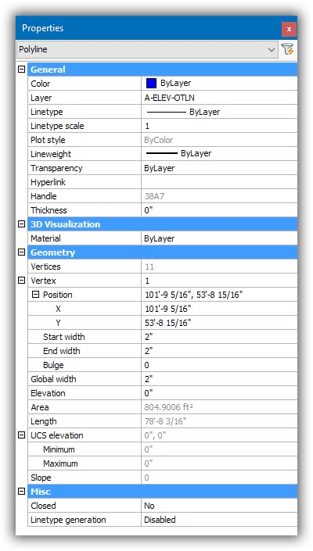

15 The Properties Panel

The Properties panel performs three tasks:null

Properties being reported for a polyline entity

  • When nothing is selected, then it sets the working properties for entities (color, layer, and so on).
  • When one entity is selected, it edits the properties of the entity.
  • When two or more entities are selected, it edits their shared properties.

To open the Properties panel, enter the Properties command or press Ctrl+1.

16 Background Color

To change the color of the screen background, follow these steps:

  1. Enter the Settings command.
  2. In the search field, enter "background-color" and then hit Enter.
  3. Select the color you want for the background.

Alternatively, enter variable names at the command prompts. For instance:

BkgColor directly controls the background of the model space background

BkgColorPs directly controls the background of the paper space background

17 Copy Between Drawings

To copy or move entities between drawings, start the command in the source drawing, then switch to the target drawing when prompted for the displacement point. Press and hold the Ctrl key (Cmd key on Macs), then hit the Tab key to cycle through all open drawings.

BricsCAD's drawing elements, such as layers, line types, text styles, dimension styles, and blocks, can be copied between open drawings using the Drawing Explorer. Follow these steps:

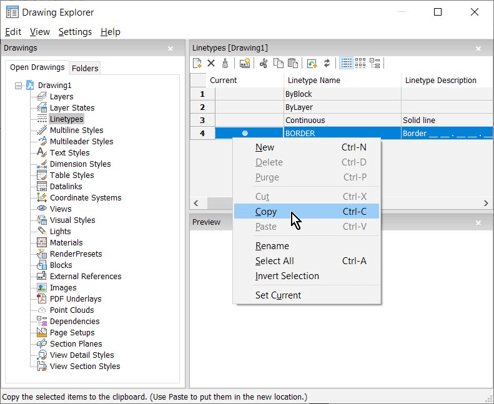

  1. Enter the Explorer command, and then choose the element you want to copy, such as "Linetypes"
  2. Right-click "Linetypes," and then choose "Copy".
  3. Switch to the other drawing, and then paste the item.

null

Pasting a linetype into another drawing.

18 Create New Drawings

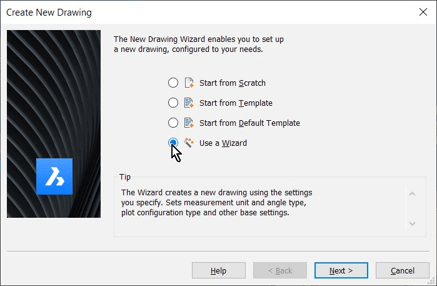

Choose New Wizard from the B menu and then choose the Use a Wizard option to create a new drawing from scratch. The new drawing wizard guides you through all the basic drawing settings.

null

Starting a new drawing with the assistance of a wizard.

19 Open Drawings

To open a drawing in BricsCAD quickly, drag it from File Explorer (Finder on Macs) to the title bar of BricsCAD.

20 Open drawing as a block

To insert the drawing as a block, drag it instead into the drawing area.

21 Save Blocks for later Use

The Save Block tool in the Drawing Explorer saves the selected block to a separate drawing, which can then be inserted into other drawings.

22 Manage Blocks

In the Drawing Explorer, you can see a thumbnail image of all blocks in the drawing. To insert the block in the current drawing, click the Insert button.

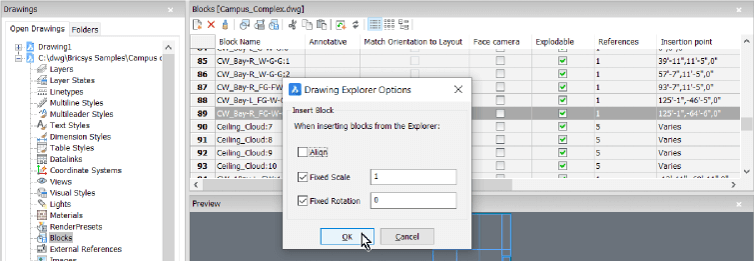

To preset parameters for blocks being inserted, right-click any block and then choose "Options".

null

Presetting options for inserting blocks.

23 Export Block Attribute Data

Block attribute data is exported to external data files with the DataExtraction command, which can then be imported into spreadsheets and database programs --- as well as brought back into the drawing as a table using the Table commands -- "From Data" option.

24 Explode Entities

The Explode command breaks complex entities, such as blocks and polylines, into their component pieces.

Select the Explode option of the Insert Block dialog to break a block into its component pieces upon insertion. Use the BEdit command to edit blocks in the block editor environment, and the RefEdit command to edit externally-referenced drawings in the reference editor.

25 Choose the Previous selection

To recall the previous selection set for the following command, choose Previous Selection in the Prompt bar or type p in the Commandline to, for instance, move a previously copied selection set.

26 Templates

You can use any drawing you want as the template for future drawings. Template drawings can contain blocks, borders, any other geometry, and all your preferred settings. To set the default template drawing in the Settings dialog, go to Program Options | Files | Templates | Template.

27 Entity Snaps

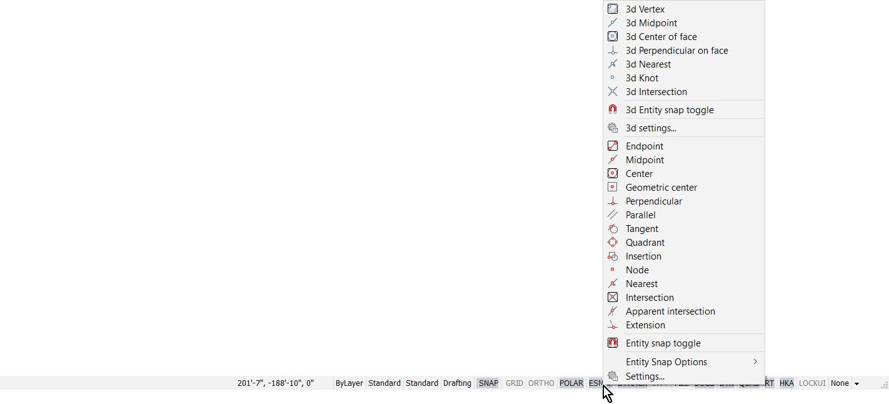

Using Entity snaps, you will draw faster and more accurately by snapping to their geometry, such as endpoints and midpoints of lines. Click a button on the Entity Snaps toolbar to set quickly and unset specific snap types. The recessed button (or blue border) indicates that the entity snap is active. (See figure below.) Click again to deactivate.

null

Toggling entity snaps.

To override the currently active entity snaps while you are drawing, press and hold the Shift key, then right-click and choose an entity snap from the context menu, which will then be used to specify the next point.

28 Center Snaps

The CENter entity snap recognizes the center point of closed polylines and circles, and arcs. This works for even non-circular curves.

29 Coordinate Systems

In each drawing, you can define your own coordinate systems (UCS), which can be saved and recalled as needed. This is useful when you need to draw at angles other than the regular orthographic x,y-plane. To have BricsCAD automatically place the working place, turn on DUCS (dynamic UCS) on the status bar.

(new in V20) BricsCAD can also use DUCS when working with most 2D entities and dimensions.

30 Attach text documents and spreadsheets

Documents from other programs (e.g., text documents and spreadsheets) can be dragged from the Windows Explorer window into your BricsCAD drawings (Windows only). To see the options available, drag the file from Explorer into BricsCAD using the right mouse button. In this case, the following dialog box is displayed:

null

Dialog box displayed by right-button dragging into BricsCAD.

Double-clicking the inserted document opens the source application.

31 The Status Bar

To toggle the display of the status bar, enter the StatBar command, or else press Shift+F3.

32 Selecting Entities

When selecting one entity from many overlapping ones, you can cycle through possible snap points by pressing the Tab key repeatedly. The entity that is highlighted is the one selected.
Hit Ctrl to select the whole solid.

33 Polylines

Polylines consist of a chain of line and arc segments. Polylines have properties that ordinary lines lack, such as width, elevation, and thickness. Draw polylines with the PLine command.

34 Follow Line Tangents

Use the Follow option to continue drawing lines, arcs, or polylines from the last point and in the same tangent direction.

35 Live preview of Line Values

To see the length and angle of the current line segment while drawing lines or polylines, right-click the coordinates field in the status bar and then choose Relative from the context menu.

null

Turning on relative coordinates.

36 Convert arcs to Circles

How to turn an arc into a circle: use the Circle command's turn Arc into circle option.

37 Join entities

Use the Join command to turn several entities with common endpoints into a single one: lines, polylines, 3D polylines, circular and elliptical arcs, splines, and helixes.

38 Match Properties

Use the Match tool (the 'brush') to apply the properties of one entity, such as color, linetype, and thickness, to other entities.

39 Orthogonal

Click ORTHO in the status bar or press F8 to toggle the orthogonal setting. Holding down the Shift key while you draw temporarily reverses the ortho setting --- on or off.

40 Dynamic View Control

BricsCAD provides dynamic view control using the mouse:

Mouse motion BricsCAD Action
Hold down middle button Real-time pan
Roll middle button (roller wheel) Real-time zoom
Hold down Shift key with middle button Real-time orbit (3D rotation)

41 The Scroll bar

Scroll bars allow you to pan horizontally and vertically. To toggle the display of the scroll bars, enter the ScrollBar command or press Shift+F4.

42 Plan Views

The Plan command restores the plan view of the current coordinate system, as well as in the World Coordinate System (WCS) or any saved User Coordinate System (UCS). From the View menu, choose Plan View.

If the UcsFollow variable is on, the plan view is restored automatically when the coordinate system changes.

43 Status Bar Options

Many settings can be changed by clicking or right-clicking on each of the fields in the status bar at the bottom of the window.

null

Right-clicking a status bar item to access options

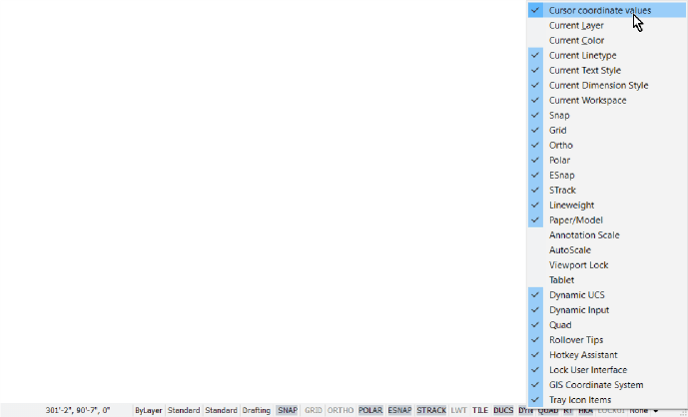

Click the small down arrow at the right-hand side of the status bar to control the display of the various fields in the status bar.

null

Toggling what gets displayed by the status bar

44 Bisect Entities

The Bisect option of the Ray command bisects angles, lines, arcs, and polylines:

  • Vertex option bisects an angle
  • Entity option draws the ray perpendicular to the midpoint of the entity

45 Set the Current Layer

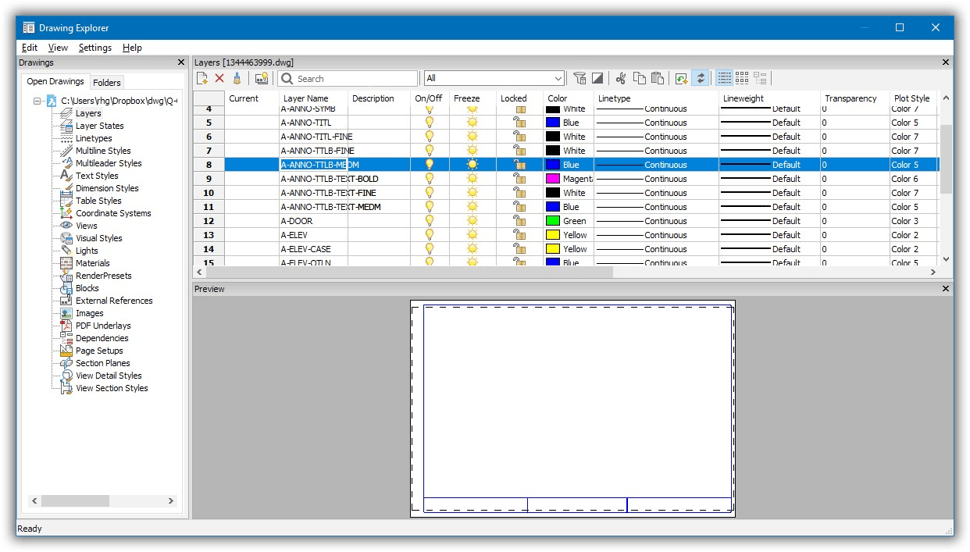

In the Drawing Explorer,, you can click the Current column to make an item current. For example, to set a layer as the current layer, click on the Current column of that layer. A blue dot appears in this column to mark the layer as current.

To make a layer current by selecting an entity on that layer, click the Set Layer by Entity tool button on the Layer toolbar.

46 View a single layer

To view the contents of each layer individually, open the Drawing Explorer to the Layers node, then click on each layer name.null

47 Email the file from inside BricsCAD

Use the Mail command to compose an email with the current drawing as an attachment.

48 Selection Options

The QSelect command creates a selection set using properties such as layer, color, and entity type.

49 AutoSave

BricsCAD automatically saves your work at a specified time interval. In the Settings dialog, under Program Options | Open and Save, choose Save time interval, then specify the time interval in minutes.

In the Settings dialog, under Program Options | Files, you can specify the folder to store automatic saves.

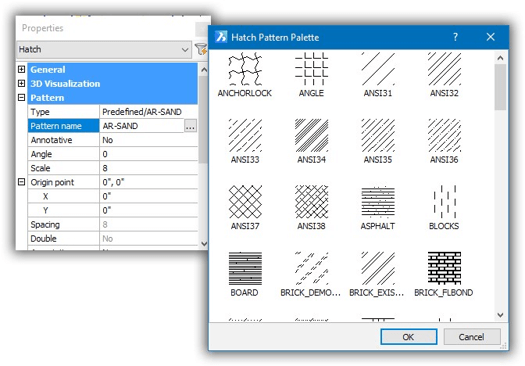

50 Hatches

You can change the pattern style of an existing hatch in the Properties panel:

  1. Select the hatch
  2. Choose Pattern name in the Properties panel
  3. Click the Browse button to select a different hatch pattern in the Hatch Pattern palette

null

Changing a hatch pattern quickly.

51 Measure Your Drawing

Use the tools on the Inquiry toolbar to measure the distance between two points, to find the area of a closed entity, or to read the x,y, and z coordinates of a point.

null

From left to right: Distance, Area, Mass Properties, ID Coordinates | List Entity Data, Drawing Status, Time Variables

52 Get Entity Report

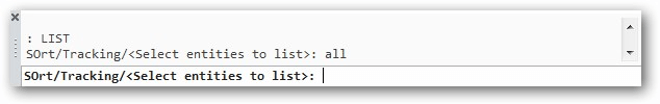

Select an entity, then type List in the Commandline to display the information about the selected entity in the Prompt History window.

List command displaying its report in the Prompt History window

53 Count the Entities in a Drawing

To get a count of entities in the drawing quickly, enter Ctrl+A to select all entities, and then cast a glance at the Properties panel's droplist.

null

Counting the types of entities in the drawing.

54 Reduce Drawing Size

Purging unused definitions might reduce the size of your drawings dramatically. Enter the Purge command, then choose All to purge all unused definitions. Purging can also be done in the Drawing Explorer with the "Purge" button.

55 Restore to default settings

To restore the user interface to its default state, click the Revert to defaults button in the Customize dialog box.

To learn more about customization, keep reading these posts!

For Further Reference

These posts provide much documentation and many tutorials for customizing most aspects of BricsCAD, but it only covers some things. Here are additional references:

REFERENCE AND TUTORIAL BOOKS

Bricsys offers these titles for learning how to operate BricsCAD. Each is a free PDF file that you download scroll down to "Download Free Books."

Inside BricsCAD --- teaches newcomers how to draft with BricsCAD through many step-by-step tutorials. (Nearly 400 color pages!)

BricsCAD for AutoCAD® Users --- clearly explains the similarities and differences between BricsCAD and AutoCAD®. (Over 300 color pages.)

Customizing BricsCAD -- A complete version of these blog posts. (Around 600 pages!)

Getting Started with BricsCAD -- A complete guide for those who have never used BricsCAD before.

BRICSCAD API REFERENCES

Bricsys provides online references for programmers. The Web site includes information on the following APIs:

  • LISP (LISt Processing)
  • Additional LISP functions, such as VLA, VLAX, and VLE
  • DCL (Dialog Control Language) --- incomplete
  • DIESEL (Direct Interpretively Evaluated String Expression Language)
  • VBA (Visual Basic for Applications) --- incomplete
  • COM (Component Object Model)
  • BRX (BricsCAD Runtime eXtension) and TX (Teigha eXtension; formerly DRX) --- incomplete  .Net
  • SDS (Softdesk Development System; deprecated)

DWG, DXF, AND DWF REFERENCES

The Open Design Alliance provides the specifications of the __DWG__ file format, as they understand it to be. Covers Release 13 through 2013. Download in PDF format (free; 262 pages) -- Autodesk® does not document DWG.

Autodesk provides references for the DXF format (drawing interchange format). Covers Release
2012. Download in PDF format (free; 270 pages).


Explore BricsCAD

Download BricsCAD Free Trial | Sign Up For News & Updates | Shop Online For BricsCAD Desktop Software


Further Reading

  1. Introduction
  2. 55 Tips for BricsCAD Users
  3. Settings
  4. Changing the Environment
  5. Custom User Interface
  6. Introduction to the Customize Dialog Box
  7. Customize the Menu Bar & Context Menus
  8. Toolbars and Button Icons
  9. Writing Macros and Diesel Code
  10. Ribbon Tabs and Panels
  11. Keystroke Shortcuts, Aliases & Shell Commands
  12. Mouse, Double-click & Tablet Buttons
  13. Absolutely Everything You Need to Know About The Quad
  14. Rollover Properties
  15. Workspaces and the User Interface
  16. Designing Tool & Structure Panels
  17. Creating Simple & Complex Linetypes
  18. Patterning Hatches
  19. Decoding Shapes & Fonts
  20. Coding with Field Text
  21. Writing Scripts
  22. Programming with LISP (Introduction)
  23. LISP Functions

Explore BricsCAD

Download BricsCAD Free Trial | Sign Up For News & Updates | Shop Online For BricsCAD Desktop Software

Ralph Grabowski

by Ralph Grabowski - CAD Writer, publisher of upFront.eZine

Ralph is the publisher of the weekly 'upFront.eZine' e-newsletter on the business of CAD and the 'WorldCAD Access' blog on technology. Author of 240+ books and ebooks about computer-aided design, and producer of 220+ videos on using CAD.

September 17, 2024 3 min

Customizing Line Types in BricsCAD

Creating custom line types in BricsCAD can significantly enhance the detail and clarity of your drawings. Whether you’re working on complex engineering plans or simple layout designs, understanding how to create your own line types can give your projects a professional edge. Follow this step-by-step guide to learn how to create both simple and complex line types in BricsCAD.

September 10, 2024 3 min

BricsCAD Partner Apps for Civil and Survey Workflows

At Bricsys, we provide a solid foundation for our specialist survey and civil app developers to create specialist civil and survey tools that deliver robust and efficient workflows for BricsCAD users. Let’s see what updates and improvements our various developer partners have made to complement BricsCAD V24's civil and survey workflows.

These civil and survey applications are among multiple third-party applications supported by BricsCAD, with our developers working to improve their functionality and remain on pace with our new features introduced with every release.

September 9, 2024 4 min

Embracing Digital Transformation in the Construction Industry with Bricsys® 24/7

The construction industry continually evolves, and digital transformation is reshaping how teams manage projects, communicate, and handle project documentation. When embracing digital solutions for construction projects, a common data environment (CDE) like Bricsys 24/7 is an excellent place to start. With a significant variance in the level of digital adoption across the industry, embracing and leveraging digital tools can help firms differentiate themselves by elevating operational efficiency and improving project outcomes.

Follow us on social media
