Moving from 2D to 3D

Each week I will guide you through a different stage of the process of moving from 2D to 3D. For this example I'm using a relatively simple house plan. In later weeks I will show you how to create rooms more quickly using some of the BricsCAD BIM tools, but for now, all of the commands used are available in BricsCAD Platinum.

If you found your way on to this page, chances are: you're a supreme master at all things 2D and vector, but when it comes to thinking in the 3'rd dimension you're at a bit of a loss. If you're completely new to BricsCAD, I suggest you check out our lessons and come back when you're ready.

Commands covered in this tutorial:

Setting up

The first thing we should do is switch from 2D to the 3D or Modeling workspace.

It's also a good idea to turn on: Quad, DYN (Dynamic Inputs), ESNAP and DUCS (Dynamic User coordinates) and turn off: Ortho.

Start with what you know

Chances are you have some 2D, vector drawings. Start by importing them into BricsCAD

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- house 2d-1024x524

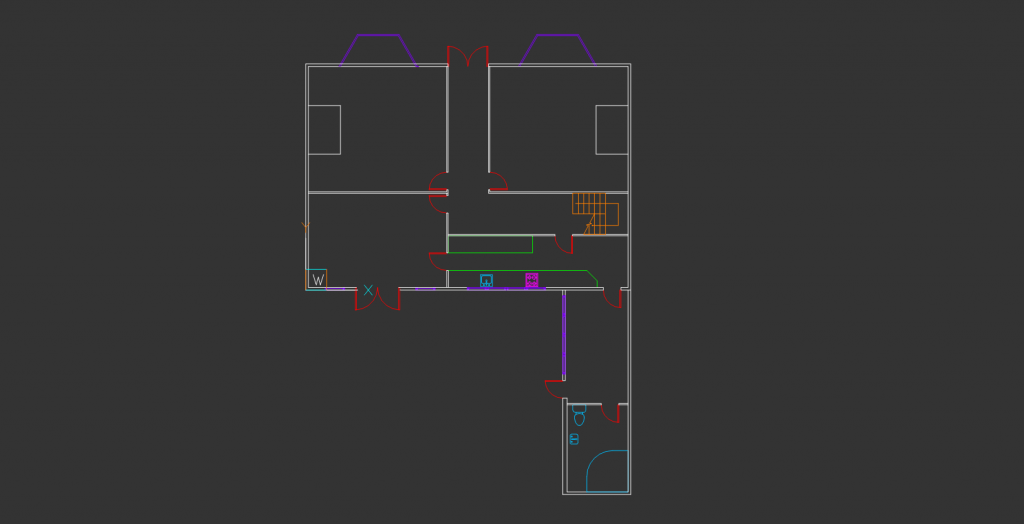

A 2D plan view I already had in .dwg format

The Walls

To begin I extruded the linework upwards to create the walls.

To do this:

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- boundary

  1. Hover over your linework, you'll probably notice that the Quad automatically detects the boundary of lines and highlights this in green.
    Tip: If it does not, turn boundary on in the Selection Modes toolbar.
  2. You can then use the Quad to select EXTRUDE (also found in the Solids section of the Model tab on the ribbon).
  3. Small blue boxes will appear (DYN) where you can enter the length and the angle of extrusion.
    Note: The EXTRUDE function can create both solids and surfaces. Use mode to change between the 2 extrusion possibilities.

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- extrude

Editing the Height

Once extruded, my walls looked too high. I selected the top off the wall using SELECTALIGNEDFACES then used Push/Pull to change the height.

To do this:

  1. Hover over the edge of the wall. The face will turn orange.
  2. Hit Tab and the selection changes to the wall's top surface.
    Note: If the cursor is not selecting the item you wish, check the Selection Modes toolbar.
  3. Then use the SELECTALIGNEDFACES command to select all wall edges aligned with the first selection.
  4. After that, use DMPUSHPULL (Direct modeling section of the Model tab in the Ribbon) to shorten the height of the walls.

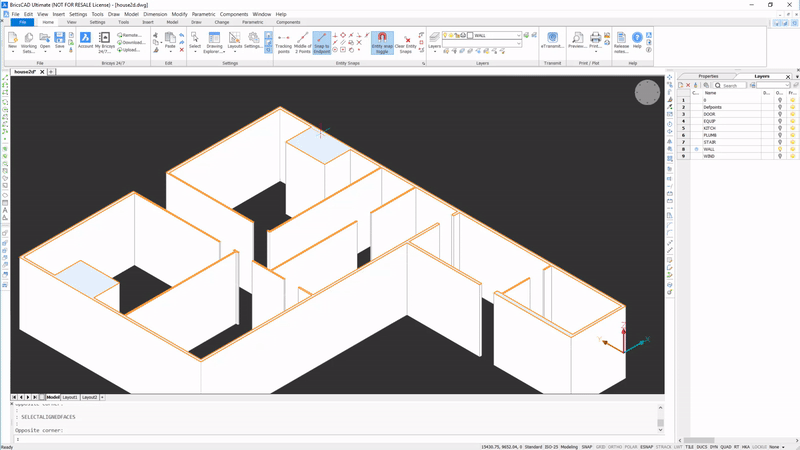

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- pushpull-1

Closing the gaps

The next thing that I noticed was that my building had holes everywhere there was supposed to be a doorway, that would probably make it chilly. Not quite what I was looking for, but easy to fix using Connect with Nearest!

To do this:

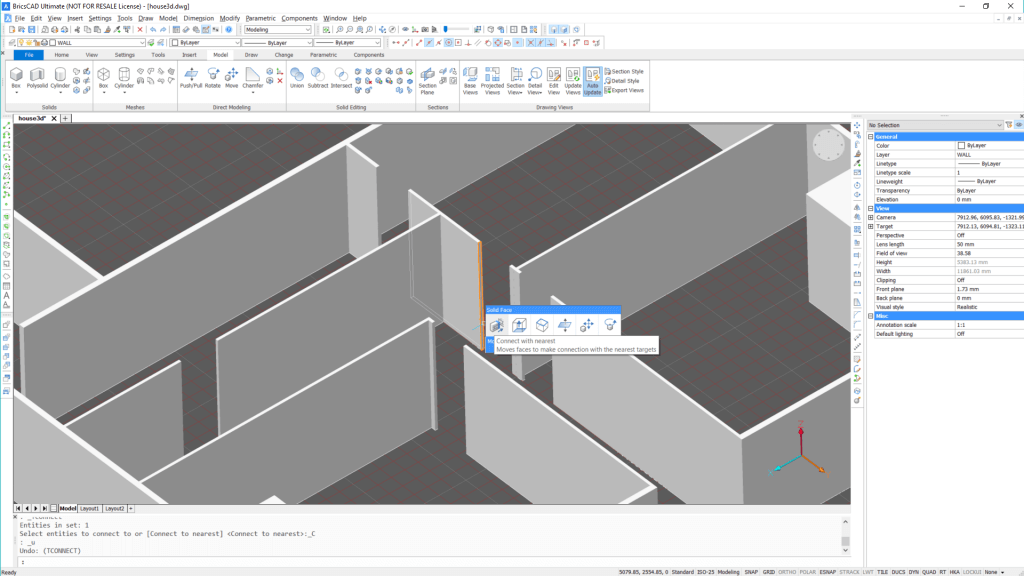

  1. Select the face to edit and use TCONNECT (Connect with Nearest) to extrude the edges of the wall and close the gaps.

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- nearest extend-1024x576

Adding the floor

Finally, I used the JOIN command to connect the lines from the edges of the boundary and extruded down to give my building a floor.

To do this:

  1. Select the lines that make up the edge of the building and use JOIN.
  2. Then use EXTRUDE to create the floor.
    Tip: If you have already got a bit excited and deleted all the lines, you can use XEDGES (Extract edges) to create polylines from a vertice.

2D, 3D, BIM - 1 Moving from 2D to 3D CAD- endweek1-1024x468

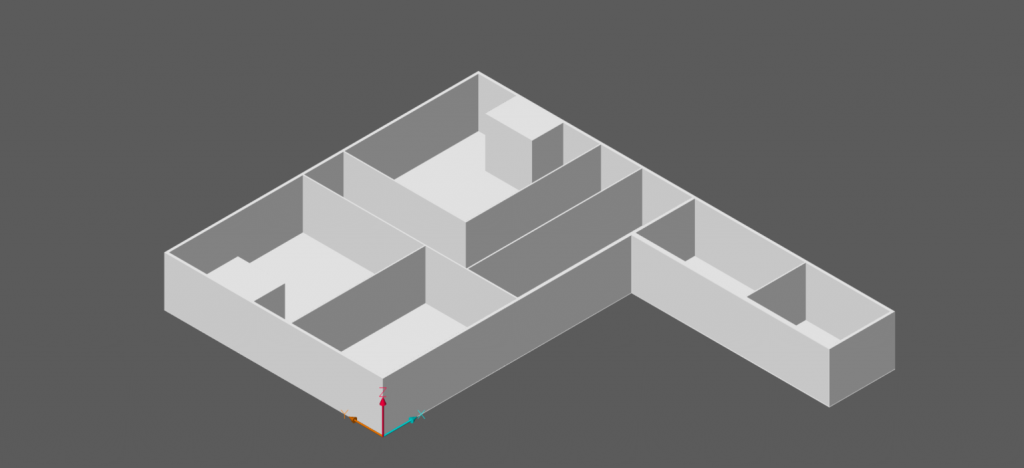

If you followed everything through, you should end up with something that looks like this.

Next time

Now that the you see how easy modeling in 3D is, why not join me next week when I show you how to make a model from a low-quality engineering drawing.
